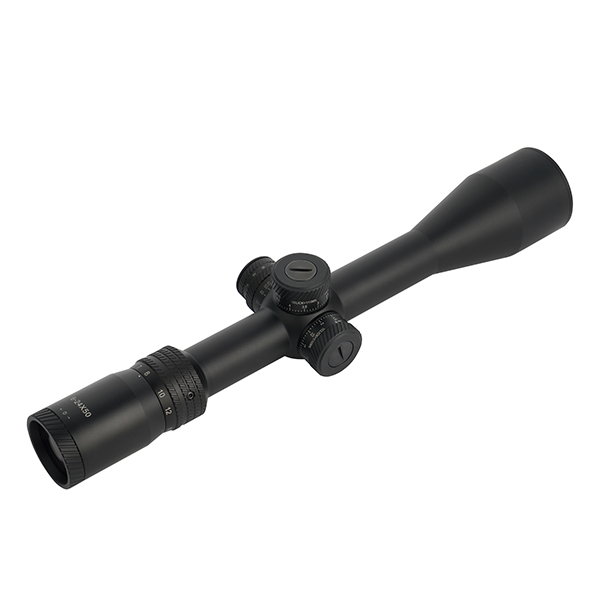

6-24X50 SFP
Power x Obj. Lens :6-24x50mm
Second Focal Plane
Glass Etched Illuminated Reticle
- none
- none
Power x Obj. Lens :6-24x50mm
Second Focal Plane
Glass Etched Illuminated Reticle
Specifitions:
Magnification: 6-24x
Objective Lens Dia.:50mm
Tube Dia.:30mm
Adjustment Click Value: 1/8MOA
Illumination: Red&Green
Field of View: 18.3-4.6 Feet @ 100 yards
Eye Relief: 4"-3.5"
Exit Pupil: 8.3-2.1mm
Elevation Range: 50 MOA
Windage Range: 50 MOA
Lens Coating: Fully multicoated
Finish: Matte
Distance between objective lens part and middle turret: 47mm
Length of middle turret part: 61mm
Distance between middle turret part to power ring: 42mm
Diopter compensation from fast-focus eyepiece (+2 to -2.5)
Fetures:
30mm Monotube. 1/8 MOA windage and elevation adjustments for fine-tuning accuracy..
The illunimation has stepless brightness.
Turret lock feature: Pull to adjust, press to lock.
Side Focus starts at 25 Yard.
Fast-focus Eyepiece for quick and easy reticle focusing
O-ring Sealed and Nitrogen Purged Ensure Water Resistance and Fog Proof performance
High quality 6061 T6 aircraft grade aluminum alloy with durable black matte finish.
